Lr1130 Button Cell

The LR1130 button cell is a 1.5V alkaline battery with a typical capacity of 80–100 mAh. It is compact (11.6 × 3.1 mm), mercury-free, and delivers stable power for small devices like watches, calculators, and medical tools.

Quantity:
Availability:





Inquire Add to Basket

Product Description

LR1130 Button Cell – Compact, Consistent, Clean Power

Manufactured by WinPow – Your Trusted Battery Partner

The LR1130 button cell is a compact 1.5V alkaline battery, widely used in compact devices requiring low-to-medium drain power. With stable voltage, low self-discharge, and a mercury-free composition, it is a smart, eco-friendly choice for both consumer and industrial electronics.

WinPow delivers high-quality LR1130 batteries with reliable performance, ideal for brands, manufacturers, and retailers looking for long-lasting button cell power.

AG(1)

Technical Specifications

Item	Details
Brand	WinPow
Battery Type	Alkaline Button Cell
Model	LR1130
IEC Equivalent	LR54
Other Equivalents	AG10, 189, L1131
Nominal Voltage	1.5V
Capacity (Typical)	85–100 mAh
Diameter	11.6 mm
Height	3.1 mm
Weight	Approx. 1.2 g
Chemical System	Alkaline Manganese Dioxide (Zn/MnO₂)
Operating Temperature	-10°C to +60°C
Storage Temperature	10°C to 25°C (recommended)
Shelf Life	Up to 3 years
Internal Resistance	< 30 ohms (fresh cell)
Mercury-Free	Yes (Compliant with RoHS & CE)
Standard Discharge Load	15 kΩ

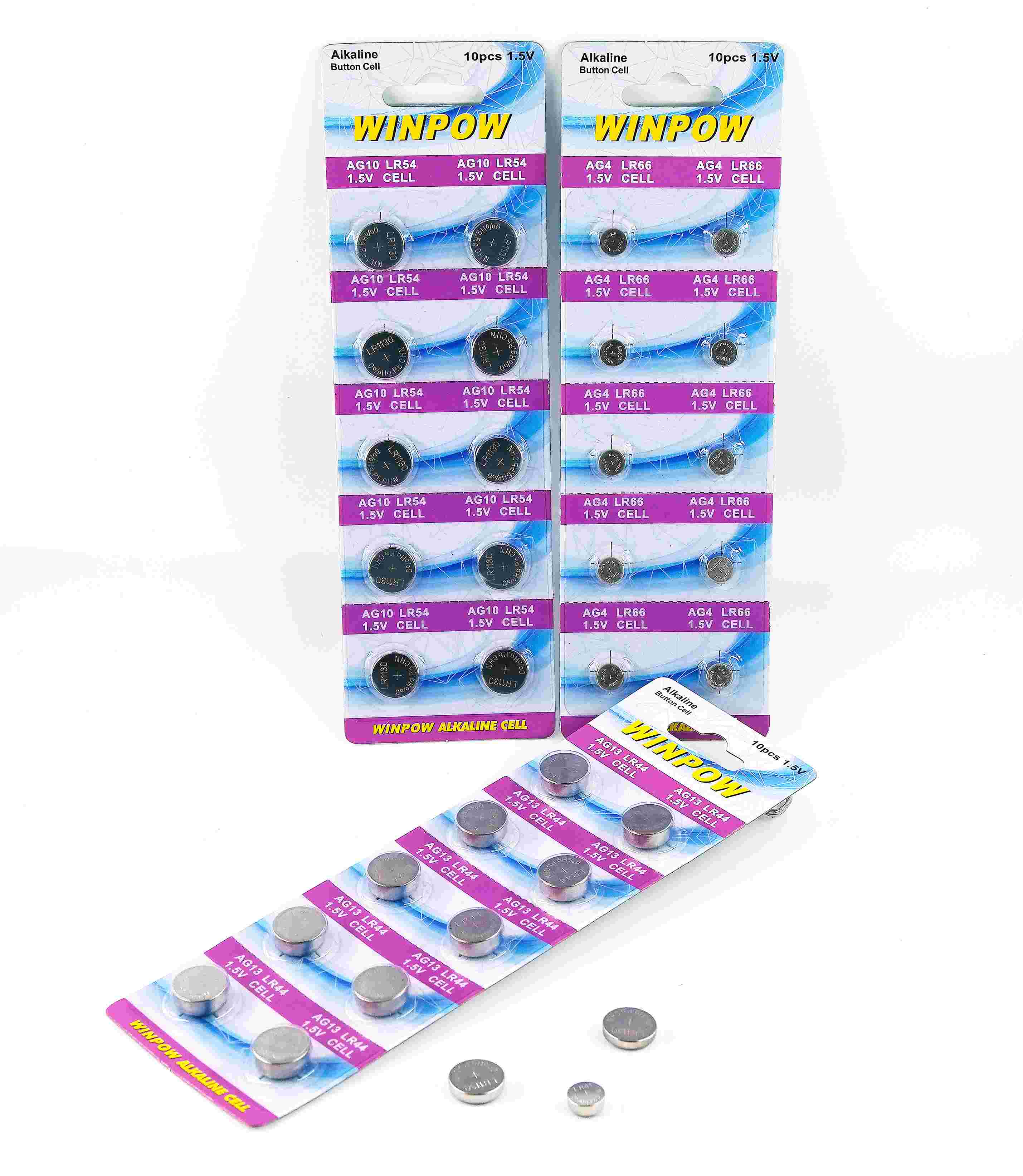

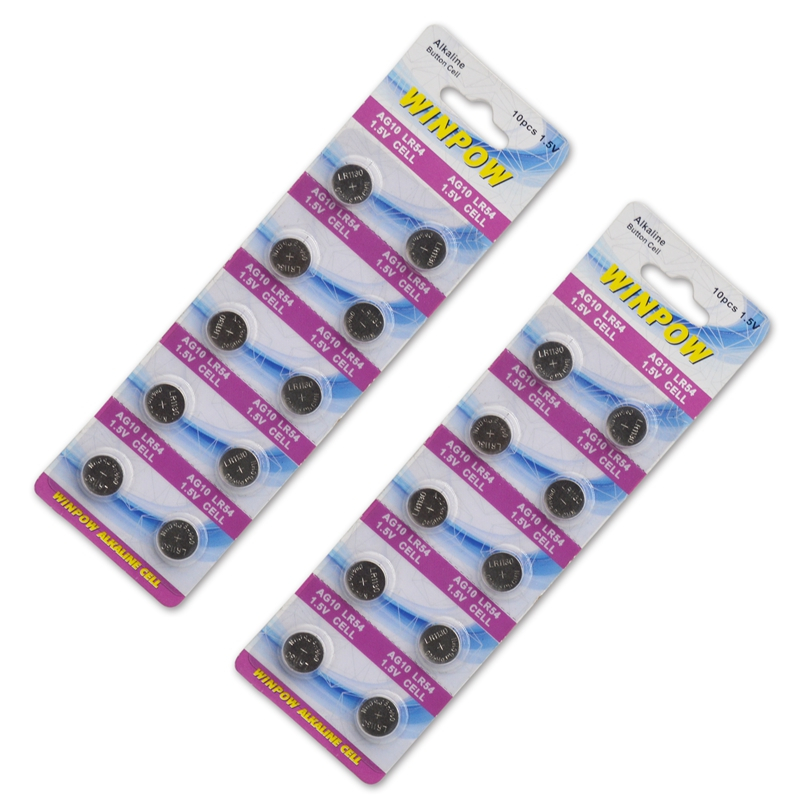

Packaging Options

Type	Details
Blister Card	1, 2, 5, or 10 pcs per card
Strip Pack	Industrial packaging for bulk use
Bulk Pack	Loose batteries in inner boxes
OEM / Private Label	Available for brand customization

Performance Highlights

Consistent Output: Delivers stable 1.5V until end of life
Leak-Proof Seal: Enhanced sealing for device safety
Low Self-Discharge: Maintains charge during storage
Mercury-Free Design: Safe and environmentally friendly
Standard Compatibility: Fits all LR1130-compatible slots

Typical Applications

The LR1130 button cell is engineered for compact electronic devices that demand reliability over time. Common use cases include:

⌚ Wristwatches and clocks
Calculators
️ Medical tools (digital thermometers, blood sugar testers)
LED toys and sound devices
Electronic measuring instruments (calipers, micrometers)
Mini flashlights and laser pointers
Game controllers and novelty electronics

Why Choose WinPow?

✅ Factory Direct – Own production with full quality control
✅ OEM/ODM Service – Custom logos, packaging, specs available
✅ Stable Supply – Monthly capacity of millions of button cells
✅ Global Reach – Exporting to 50+ countries worldwide
✅ Strict Testing – Each batch checked for voltage, capacity, resistance, and leakage

Let’s Power Up Together

Looking for a reliable LR1130 supplier? Whether you’re sourcing for retail, OEM packaging, or device integration, WinPow provides dependable batteries with technical support and competitive pricing.
