LR1130

The LR1130 is a small, round alkaline button cell that delivers a steady 1.5V output. It has a typical capacity of 85–100 mAh, making it ideal for low-drain devices like watches, calculators, and medical tools. With its compact size (11.6 mm × 3.1 mm) and mercury-free design, the LR1130 provides stable performance, long shelf life, and safe use in everyday electronics.

Quantity:
Availability:





Inquire Add to Basket

Product Description

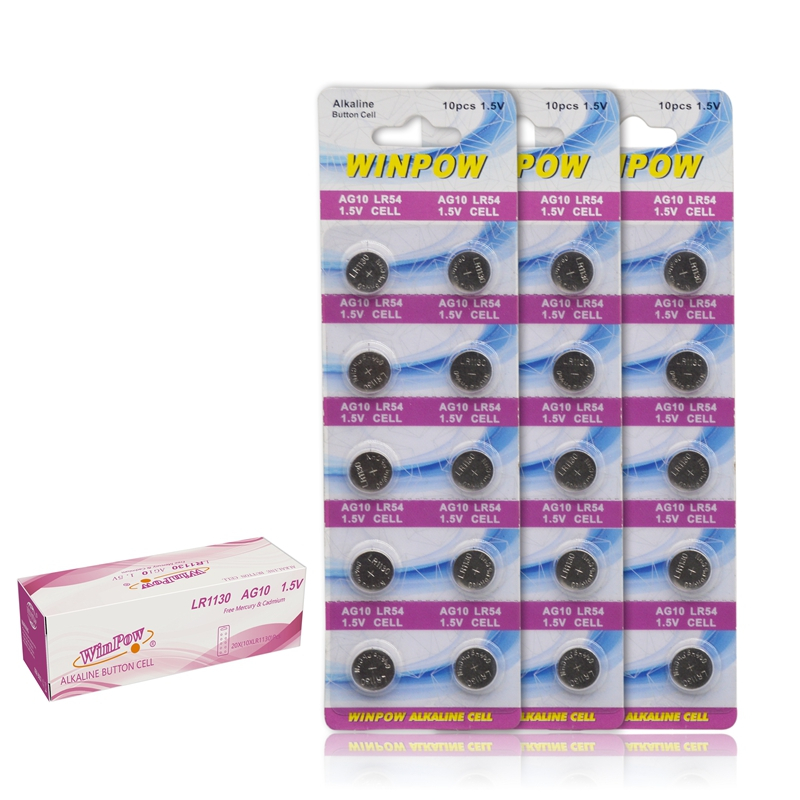

LR1130 Alkaline Button Cell

Powered by WinPow – Stable Energy in a Compact Size

The LR1130 is a compact and reliable alkaline button cell battery that delivers 1.5V steady output. It is widely used in low-drain devices such as watches, calculators, thermometers, and small LED products. WinPow provides high-quality LR1130 batteries with consistent performance, long shelf life, and RoHS-compliant design.

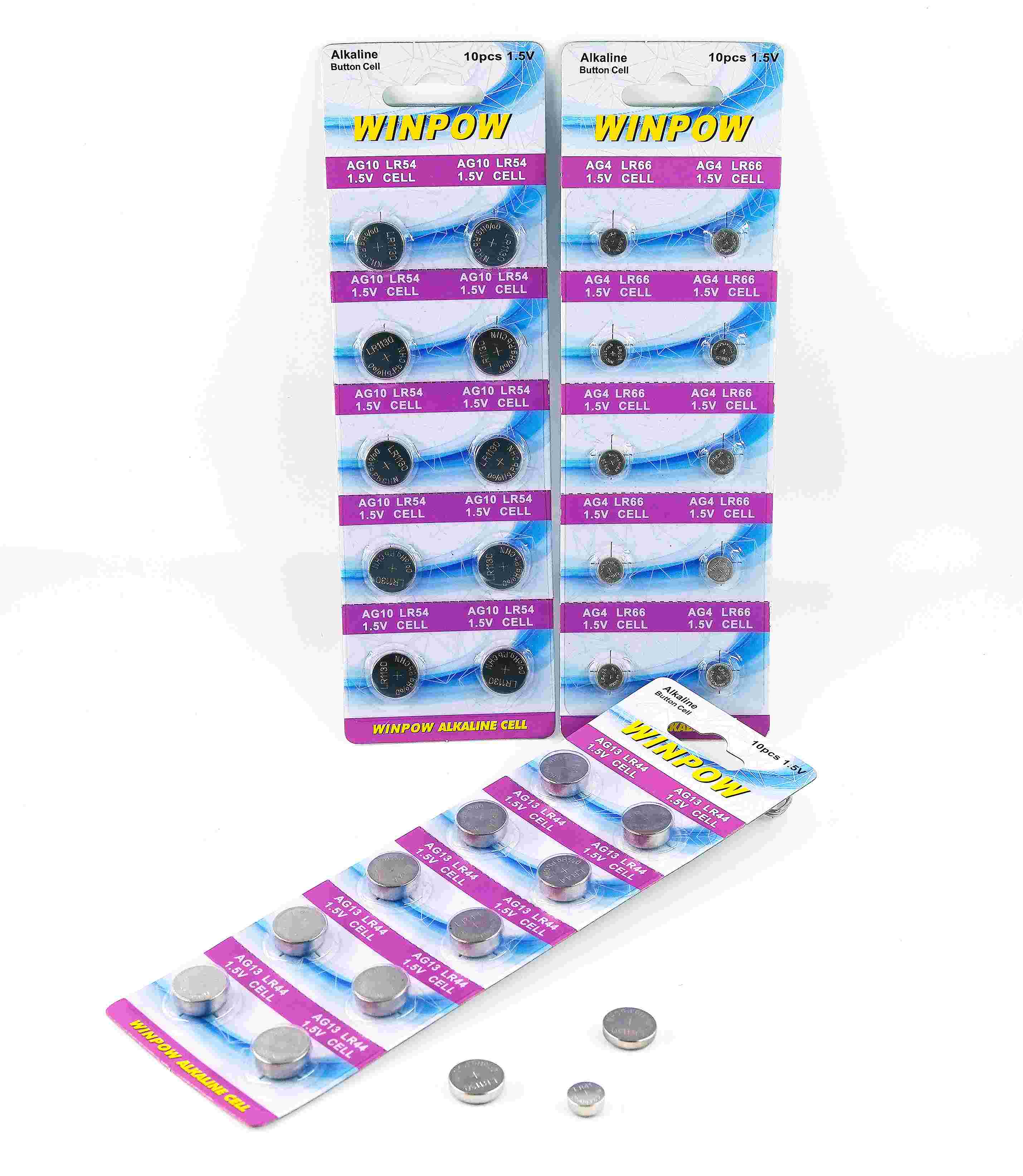

AG(1)

Technical Specifications

Item	Details
Model	LR1130
Brand	WinPow
Battery Type	Alkaline Button Cell
Chemistry	Zn/MnO₂
Nominal Voltage	1.5V
Capacity (Typical)	85–100 mAh
Diameter	11.6 mm
Height	3.1 mm
Weight	Approx. 1.2 g
Operating Temp. Range	-10°C to +60°C
Shelf Life	Up to 3 years
IEC Standard	LR54
Other Names	AG10, L1131, 189
Mercury-Free	Yes (RoHS Compliant)

Performance Features

✅ Stable 1.5V output for consistent device function
✅ Low internal resistance for better conductivity
✅ Long shelf life with low self-discharge rate
✅ Safe and leak-resistant design
✅ Fully compliant with environmental standards (no mercury)

Common Applications

Device Type	Examples
Timekeeping Devices	Watches, desk clocks
Consumer Electronics	Calculators, laser pointers
Medical Instruments	Digital thermometers, health meters
Toys and Gadgets	LED toys, sound modules
Measuring Tools	Digital calipers, small testers
